Carding Machine: Its Definition, Objectives, Function & Significance, etc.

Unleashing the Potential of Carding Machines: A Textile Game Changer

Keywords: carding machine, textile industry, fiber preparation, spinning process, carding cylinder, carding efficiency, staple fibers, input materials, output quality, productivity.

The textile industry has witnessed remarkable advancements in machinery, revolutionizing various stages of production. One such pivotal machine that plays a crucial role in fiber preparation is the carding machine. In this article, we delve into the definition, objectives, functions, inputs, outputs, and significance of carding machines in the textile industry.

Definition of Carding Machine:

A carding machine is a mechanical device utilized in the textile industry to align, clean, and separate fibers, preparing them for the subsequent spinning process. It serves as an essential component in transforming raw fibers into quality yarn, enhancing the overall efficiency of textile production.

Objectives of Carding Machine:

The primary objectives of a carding machine include:

1. Fiber Cleaning: Carding machines remove impurities, such as dust, dirt, and short fibers, from the raw material. This cleaning process ensures that only high-quality fibers proceed to the spinning process.

2. Fiber Alignment: The machine aligns the fibers in a parallel orientation, enabling a smoother and more consistent yarn formation.

3. Fiber Evenness: Carding machines improve the evenness of the fibers, ensuring a uniform distribution of fiber properties throughout the final yarn.

Functioning of Carding Machine:

The core component of a carding machine is the carding cylinder, which comprises numerous fine wire teeth. The process involves the following steps:

1. Feeding: The raw material, which can be staple fibers like cotton or synthetic fibers, is fed into the carding machine through a hopper.

2. Opening and Cleaning: The machine uses various mechanisms, such as beaters, cleaners, and air currents, to open and clean the fibers, eliminating impurities and forming a fiber web.

3. Carding: The fiber web is then passed through the carding cylinder, where the fine wire teeth comb and align the fibers, separating any remaining impurities and creating a continuous fiber strand known as a sliver.

4. Sliver Formation: The carding machine further processes the aligned fibers into a compact and uniform sliver, ready for subsequent spinning processes.

Inputs and Outputs of Carding Machine:

The inputs and outputs of a carding machine are as follows:

Inputs:

1. Raw Material: Staple fibers, such as cotton, wool, or synthetic fibers, are fed into the machine.

2. Lap

Outputs:

1. Fiber Web: The carding machine produces a clean and aligned fiber web, free from impurities.

2. Carded Sliver: The aligned fibers are converted into a continuous sliver, ensuring consistent yarn quality and strength.

Significance of Carding Machines:

Carding machines play a pivotal role in the textile industry by significantly impacting the overall productivity and quality of yarn production. Here are some key reasons why carding machines are of utmost significance:

1. Improved Fiber Quality: The thorough cleaning and alignment of fibers ensure a higher quality end product, with reduced defects and improved yarn strength.

2. Enhanced Carding Efficiency: Carding machines utilize advanced technologies and mechanisms, optimizing the carding process for maximum efficiency and productivity.

3. Consistent Yarn Production: By creating uniform slivers and aligning fibers, carding machines contribute to the production of consistent and even yarn, minimizing variations in the final product.

4. Waste Reduction: Efficient carding machines minimize fiber waste by effectively removing impurities and short fibers, maximizing the utilization of input materials.

Basic Actions On A Carding Machine:

There are Three basic action between clothing of different rollers

• Point To Point Action:

                Carding Action:

                        -Carding action results in opening of fibres, takes place between cylinder  and flats                                  clothing.

• Point To Back Action:

                Stripping Action: Material Transfer

                        -Stripping action transfer material from one clothing to another.

• Back To Back Action

                Brushing Action: Cleaning of surface.

                        -Back to back action results in cleaning of one clothing with another clothing.

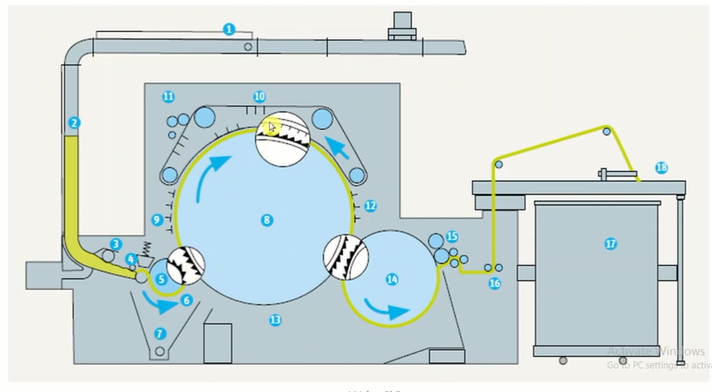

Working Process Of Carding Machine:

The working process of a carding machine in the textile industry involves several essential steps that ensure the effective preparation of fibers for subsequent spinning processes. Let's explore the working process of a carding machine in detail:

1. Feeding:

The raw material, such as staple fibers like cotton or synthetic fibers, is fed into the carding machine through a hopper. The feeding mechanism ensures a consistent and controlled flow of fibers into the machine.

2. Opening and Cleaning:

Once the fibers enter the machine, various mechanisms are employed to open and clean them. Beaters, cleaners, and air currents work together to remove impurities, such as dust, dirt, and short fibers, ensuring a cleaner raw material for further processing.

3. Carding Cylinder:

The heart of the carding machine is the carding cylinder, which consists of a series of fine wire teeth. The fiber web, formed from the opening and cleaning process, is passed through the carding cylinder. As the fiber web moves along the surface of the cylinder, the fine wire teeth comb and align the fibers, further separating any remaining impurities.

4. Fiber Alignment:

During the carding process, the carding cylinder aligns the fibers in a parallel orientation. This alignment is crucial as it ensures a smoother and more consistent yarn formation in the subsequent spinning processes.

5. Web Formation:

As the fibers are combed and aligned by the carding cylinder, they form a continuous fiber strand known as a sliver. The sliver is a compact and uniform web of aligned fibers, ready for further processing.

6. Sliver Formation:

The carding machine further processes the aligned fibers to produce a sliver. It uses mechanisms like drafting, compression, and condensing rollers to compact the fiber web into a dense and consistent sliver. This sliver is then ready for the subsequent spinning processes, where it is transformed into yarn.

Throughout the working process of a carding machine, various adjustments and settings can be made to optimize the quality and efficiency of the output. Parameters like feed rate, carding speed, and wire settings on the carding cylinder can be adjusted to achieve desired results.

The working process of a carding machine plays a critical role in preparing the fibers for spinning, ensuring the production of high-quality and consistent yarn. By effectively aligning and cleaning the fibers, carding machines contribute to the overall efficiency and productivity of the textile industry.

Why Carding Is Called As the Heart Of Spinning?

Carding is often referred to as the "heart of spinning" in the textile industry due to its significant role in the process of converting raw fibers into yarn. There are several reasons why carding holds this crucial position:

1. Fiber Preparation: Carding machines are responsible for the initial preparation of fibers before they are further processed in spinning. The carding process opens up and cleans the fibers, removing impurities, short fibers, and any foreign matter. This preparation step ensures that the fibers are in an optimal condition for subsequent spinning processes.

2. Fiber Alignment: One of the primary functions of carding is to align the fibers in a parallel orientation. The carding machine combs the fibers using fine wire teeth on the carding cylinder, ensuring that the fibers are uniformly arranged. This alignment is crucial for the production of high-quality yarn as it results in improved yarn strength, evenness, and consistency.

3. Removal of Neps and Irregularities: Neps are small entanglements or knots of fibers that can occur naturally or during the processing of raw fibers. Carding machines effectively remove neps, along with other irregularities, during the carding process. By eliminating these unwanted elements, carding enhances the quality and uniformity of the fibers, resulting in smoother and more consistent yarn.

4. Blending and Mixing: Carding machines also facilitate the blending and mixing of different types of fibers. By feeding multiple fiber types together, carding machines ensure that the fibers are thoroughly blended and mixed, creating a homogeneous blend. This is especially important when producing blended yarns that combine different fiber properties and characteristics.

5. Fiber Waste Reduction: Carding machines help minimize fiber waste by efficiently removing impurities, short fibers, and other unwanted materials. The cleaning and alignment process of carding ensures that only high-quality fibers proceed to subsequent spinning processes. By reducing waste, carding contributes to cost savings and improves the overall efficiency of yarn production.

Considering these critical functions and contributions, carding is rightfully considered the "heart of spinning." It sets the foundation for producing high-quality yarn by preparing the fibers, aligning them, and removing irregularities. The success and effectiveness of subsequent spinning processes heavily rely on the quality and consistency achieved during the carding process.

In conclusion, carding machines are indispensable in the textile industry, streamlining the fiber preparation process and significantly enhancing the overall quality and productivity of yarn production. By utilizing these advanced machines, textile manufacturers can achieve higher efficiency, consistent yarn quality, and ultimately contribute to the growth of the industry as a whole.
